General Pump High Draw Stainless Steel Chemical Injector 5000psi

General Pump high draw downstream low pressure soap and chemical injector body with stainless steel body and viton seals.

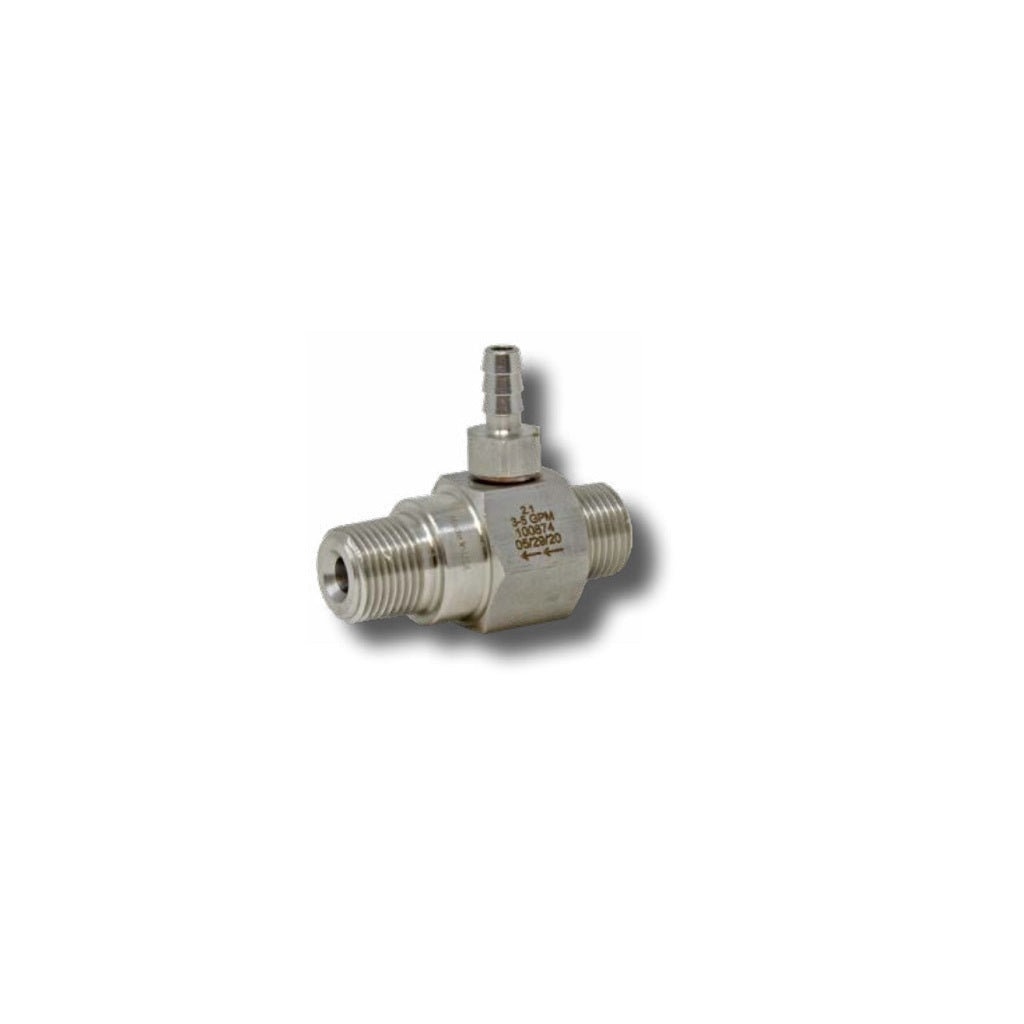

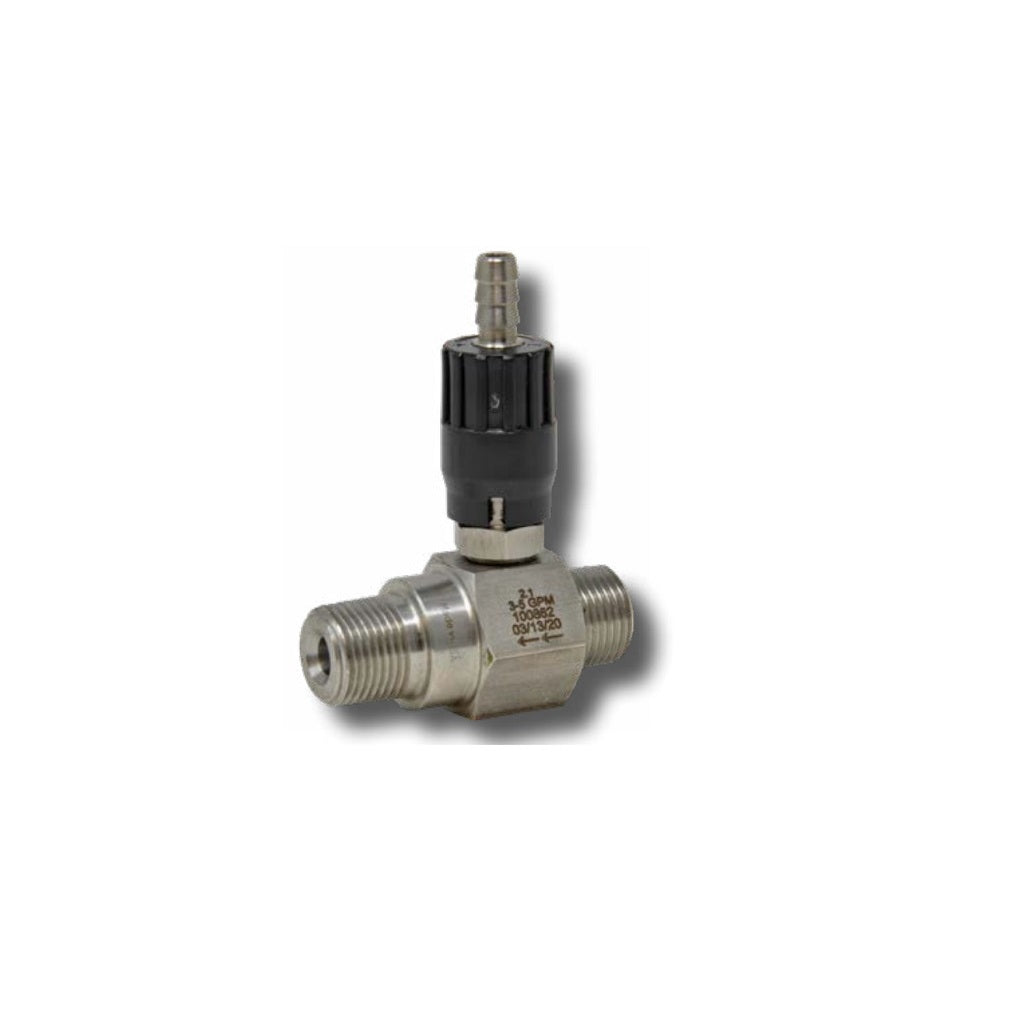

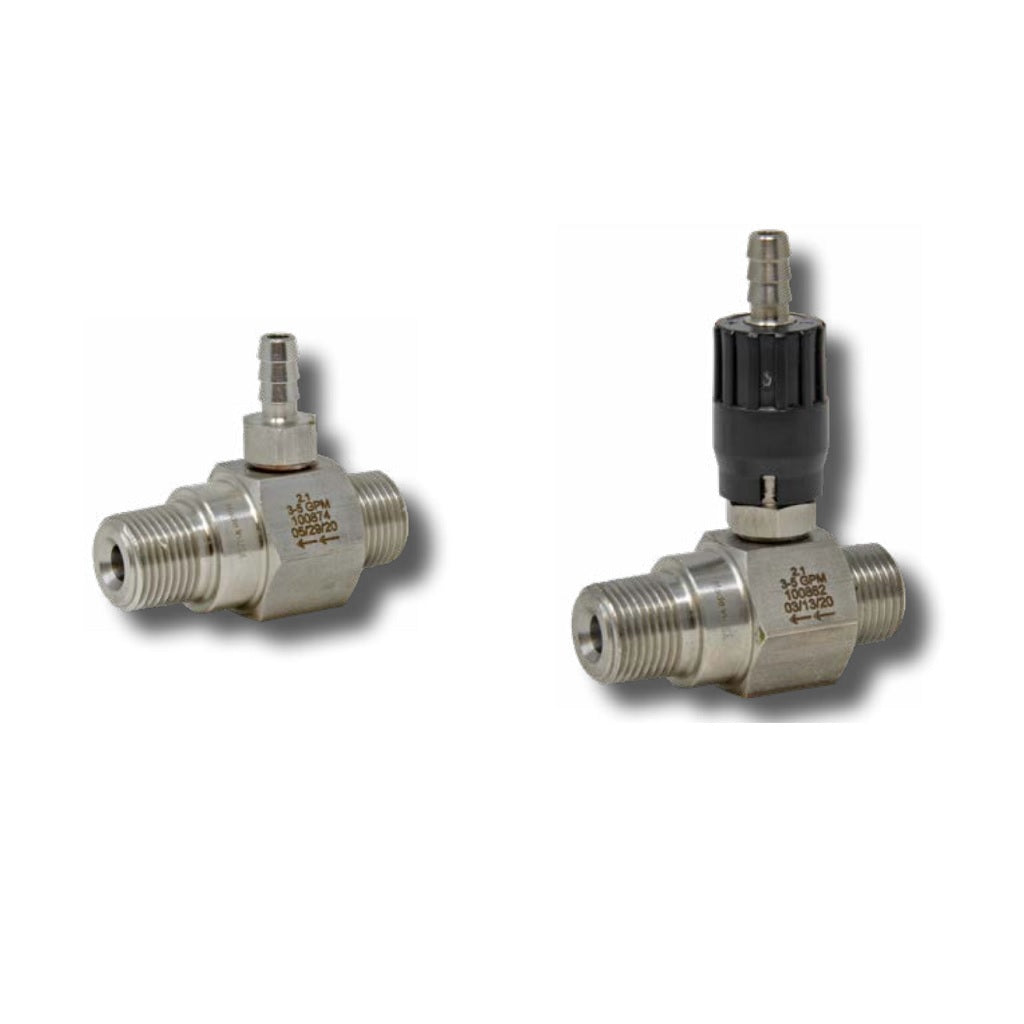

High draw model up to a 20% injection rate. Available with both fixed and adjustable flow.

5000psi Maximum Rated Pressure

• 190° F
• 1/4" barb soap inlet.
• 3/8" Male NPT thread inlet / outlet.

Use with a low pressure soap nozzle or dual lance to reduce the line pressure and the injector will draw soap and detergent into the water stream.

Match the model with your water flow! (GPM)

• 2-3gpm (1.8mm)
• 3-5gpm (2.1mm)
• 5-8gpm (2.3mm)

Will not draw soap at high pressure.
