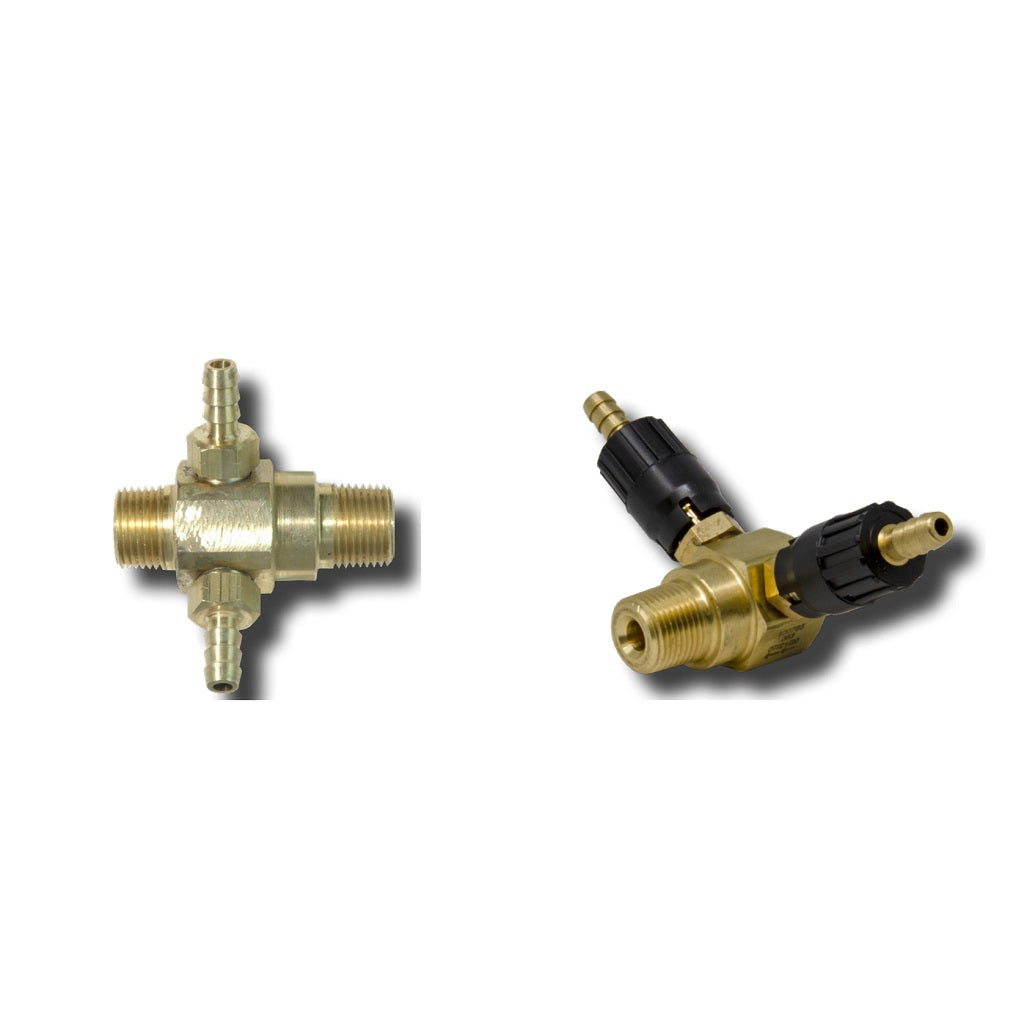

General Pump High Draw Dual Barb Chemical Injector 4500psi

General Pump high draw dual barb downstream low pressure soap and chemical injector body.

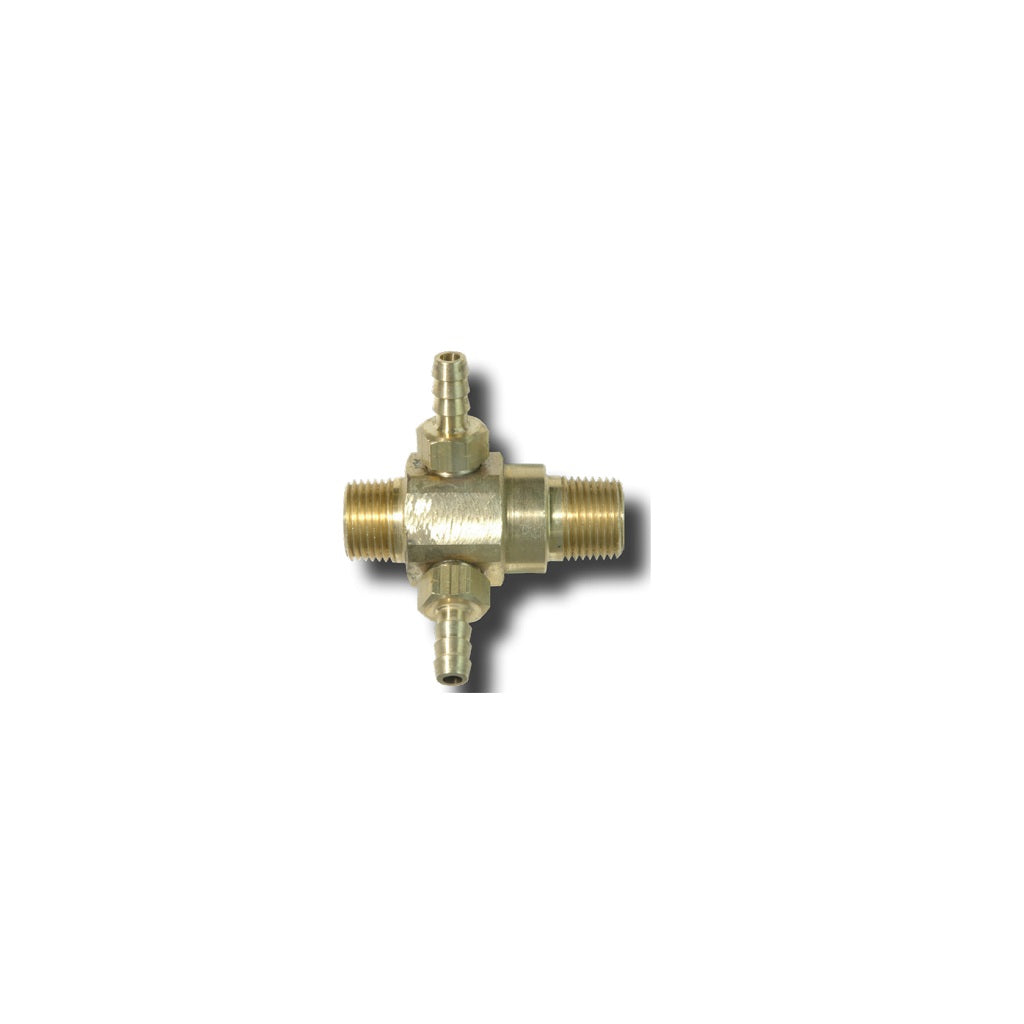

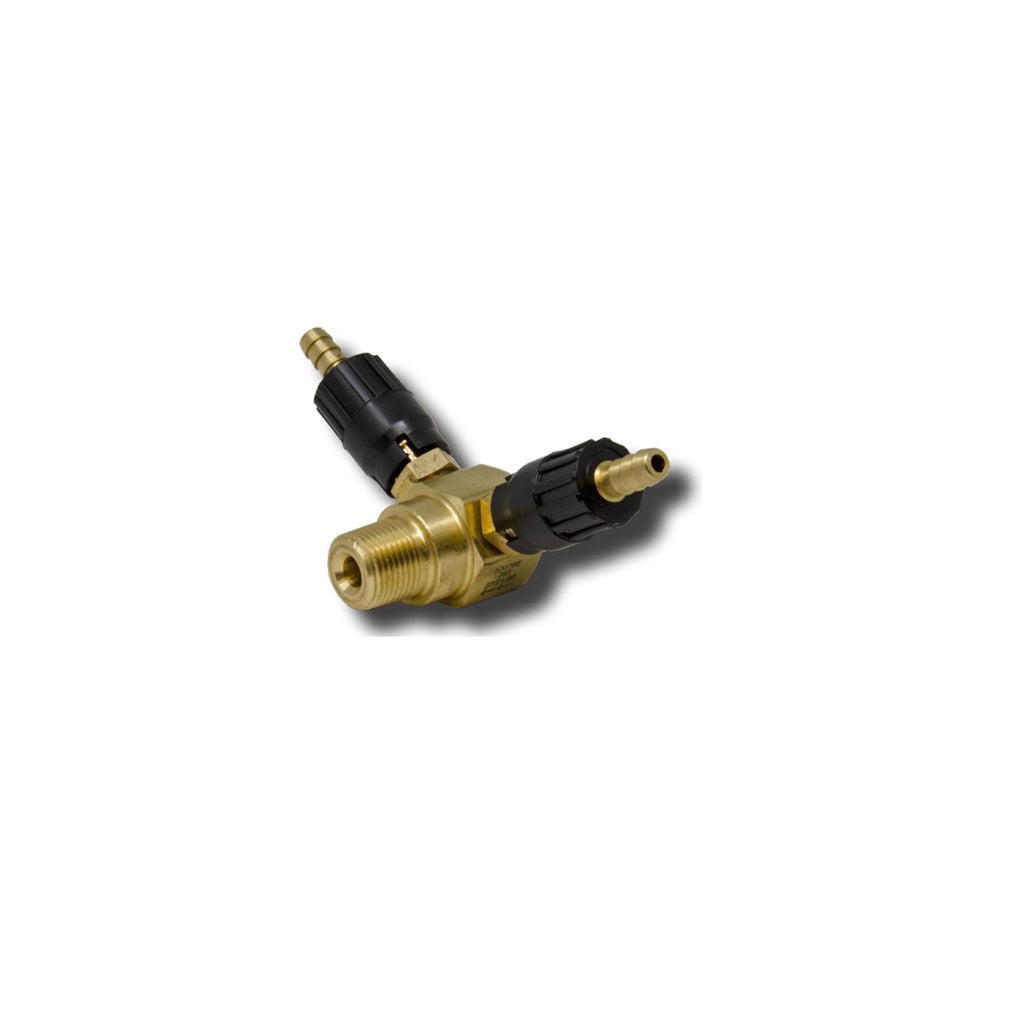

High draw model up to a 20% injection rate. Available with both fixed and adjustable flow.

4500psi Maximum Rated Pressure

• 190° F
• 1/4" barb soap inlet.
• 3/8" Male NPT thread inlet / outlet.

Use with a low pressure soap nozzle or dual lance to reduce the line pressure and the injector will draw soap and detergent into the water stream.

Match the model with your water flow! (GPM)

• 3-5gpm (2.1mm)
• 5-8gpm (2.3mm)

Will not draw soap at high pressure.
