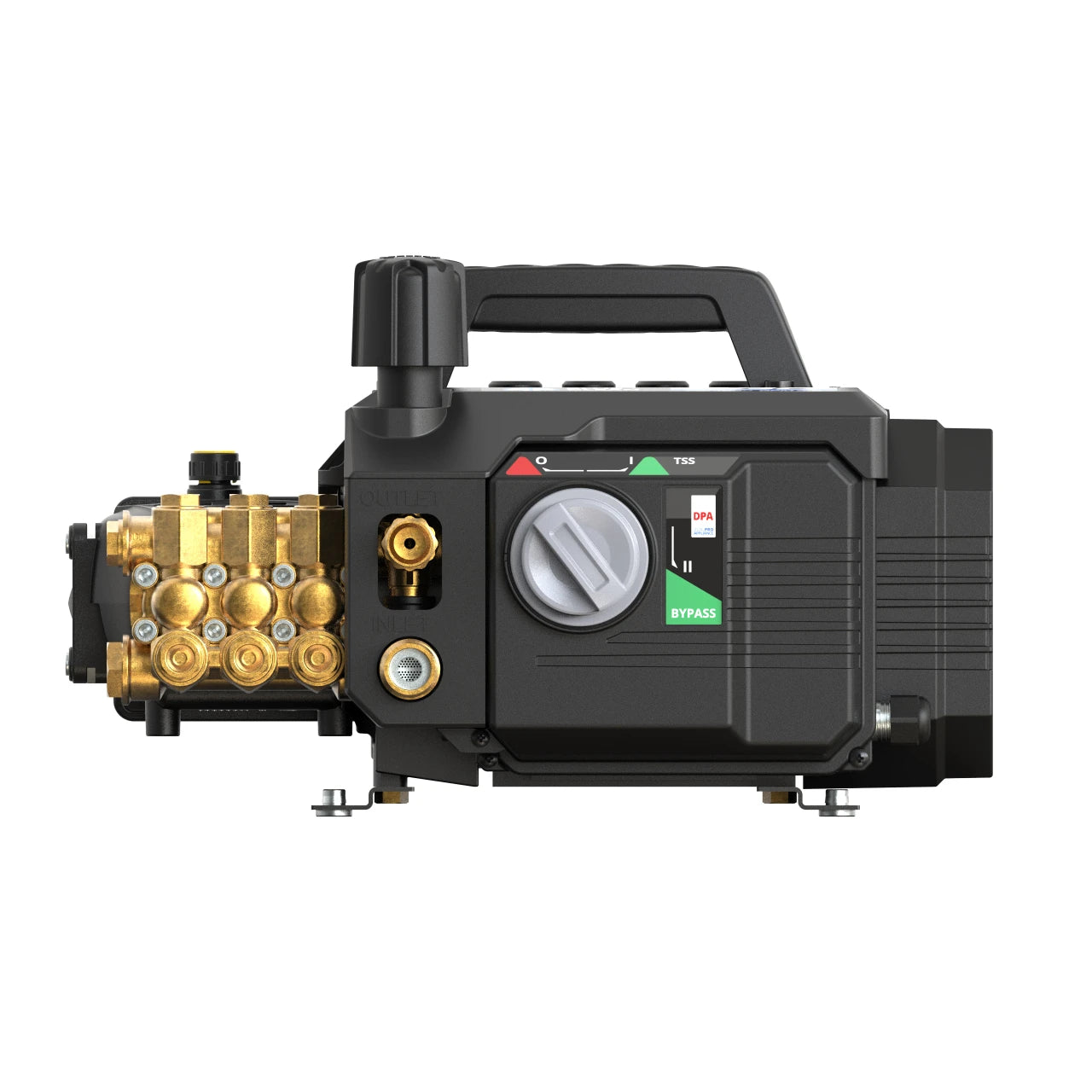

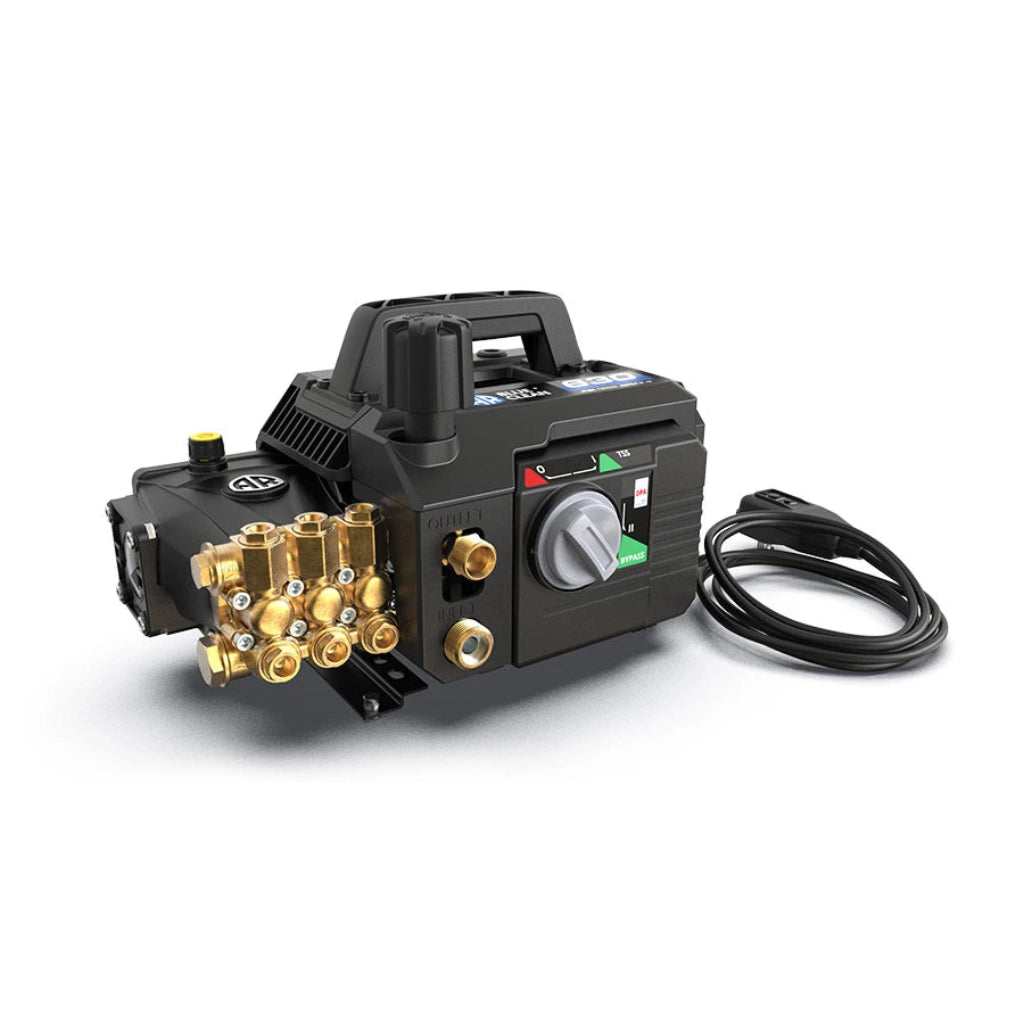

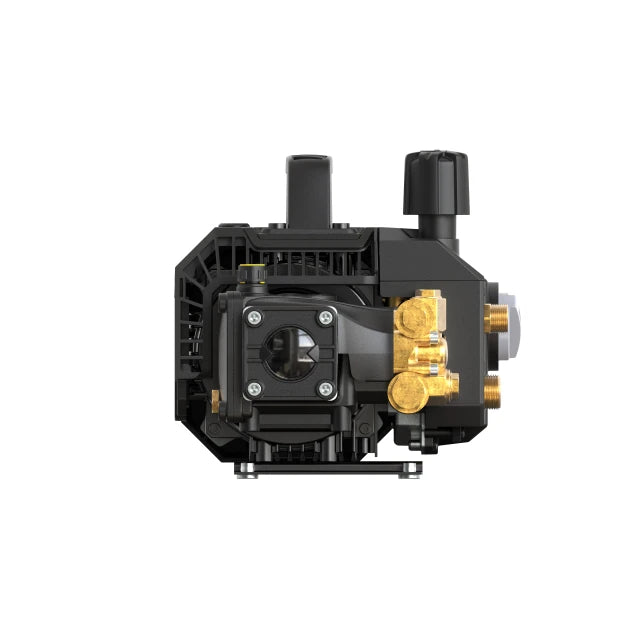

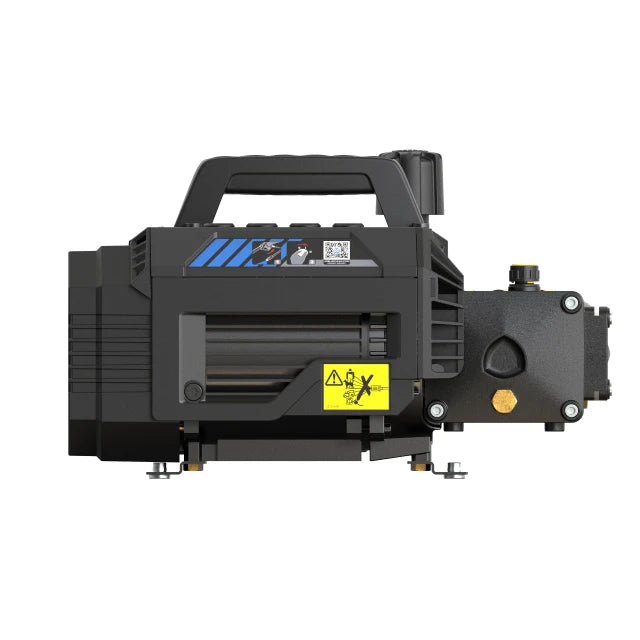

AR630 Series (Power Unit)
Industrial Induction Motor & Triplex Pump Power Unit
1600 PSI
2.1 GPM
120V / 20A
PUMP & MOTOR CONSTRUCTION
-
Pump Type: Triplex pump with ceramic pistons and connecting rod system.
-
Head Material: Forged brass pump head.
-
Motor: Single-phase induction motor with thermal protection.
-
Switch: DPA 3-position system (OFF / TSS / Bypass).
-
Unloader: Integrated pressure adjustment with bypass discharge.
-
Features: Self-priming, external oil sight glass, and breathable dipstick.
-
Frame: Portable top-handle design with built-in nozzle storage.
VARIANT SELECTION GUIDE
| Feature |
AR630 (Standard) |
AR630HW (Hot Water) |
| Part Number |
15397 |
15624 |
| Max Inlet Temp |
122°F (50°C) |
180°F (82°C) |
| Seals |
Standard NBR |
High-Temp Rated |
⚠️ CONFIGURATION NOTE: This is the
Power Unit Only. It does not include a high-pressure hose, trigger gun, wand, or nozzles.
APPLICATIONS
- Professional Auto Detailing
- Stationary Wash Bay Builds
- Kitchen & Food Prep Sanitation
- HVAC Condenser Cleaning
- Mobile Detailing Trailers
- Industrial Degreasing (HW Model)
LOGISTICS:
Weight: 67 lbs
Plug: 20 AMP GFCI
Dimensions: 14" L x 10" W x 11" H (Approx)
