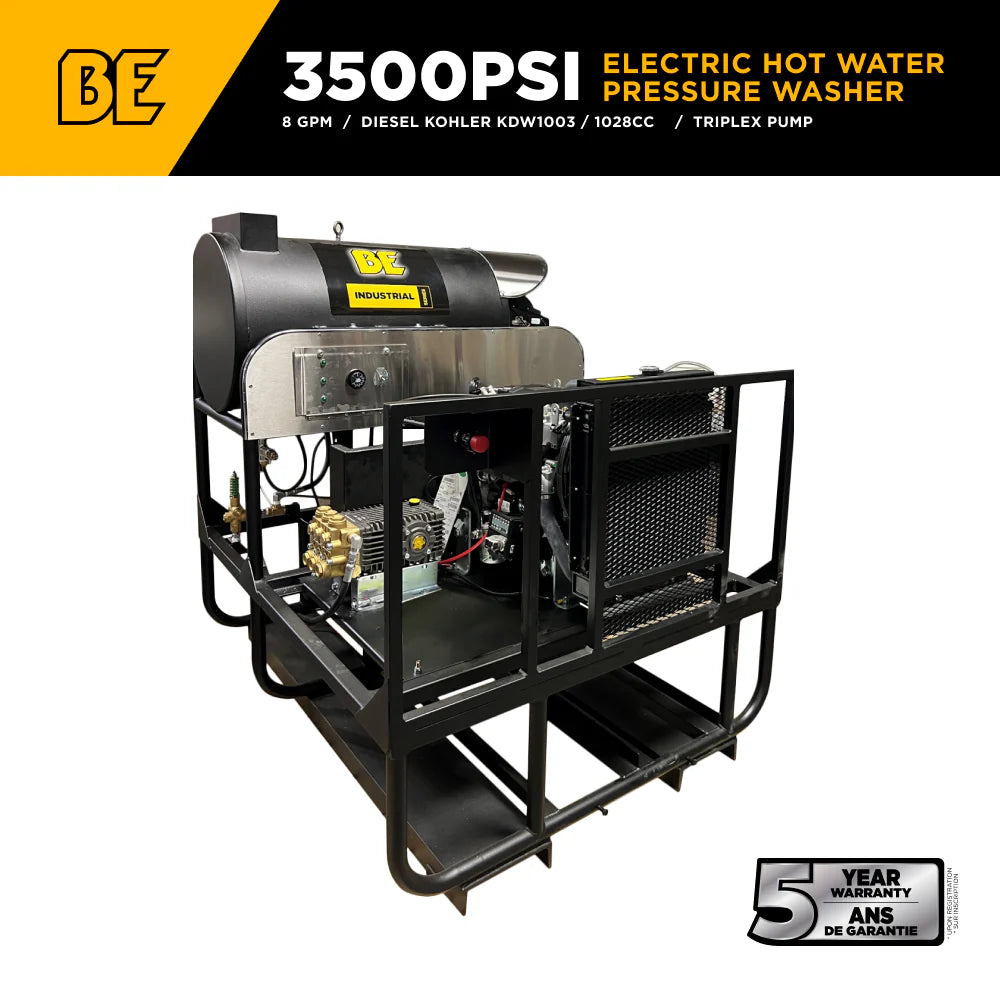

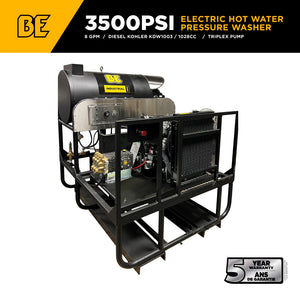

5835DG
Industrial All-Diesel Stationary Hot Water Skid
🔥 200°F HEAT
3500 PSI
8.0 GPM
🛡️ CLICK FOR WARRANTY & POLICY INFORMATION
▼
STANDARD COVERAGE:
✅ 3-Year Kohler Diesel Engine Warranty
✅ 5-Year General Triplex Pump Warranty
✅ 3-Year Beckett Burner Warranty
✅ Lifetime Heating Coil Warranty
⚠️ WHAT IS NOT COVERED:Warranties cover
Manufacturer Defects only. The following are
EXCLUDED:
-
Wear Parts: O-rings, valves, nozzles, gun/wand.
-
User Error: Freeze damage (failure to winterize), running without water, or fuel contamination.
POWER & HEATING

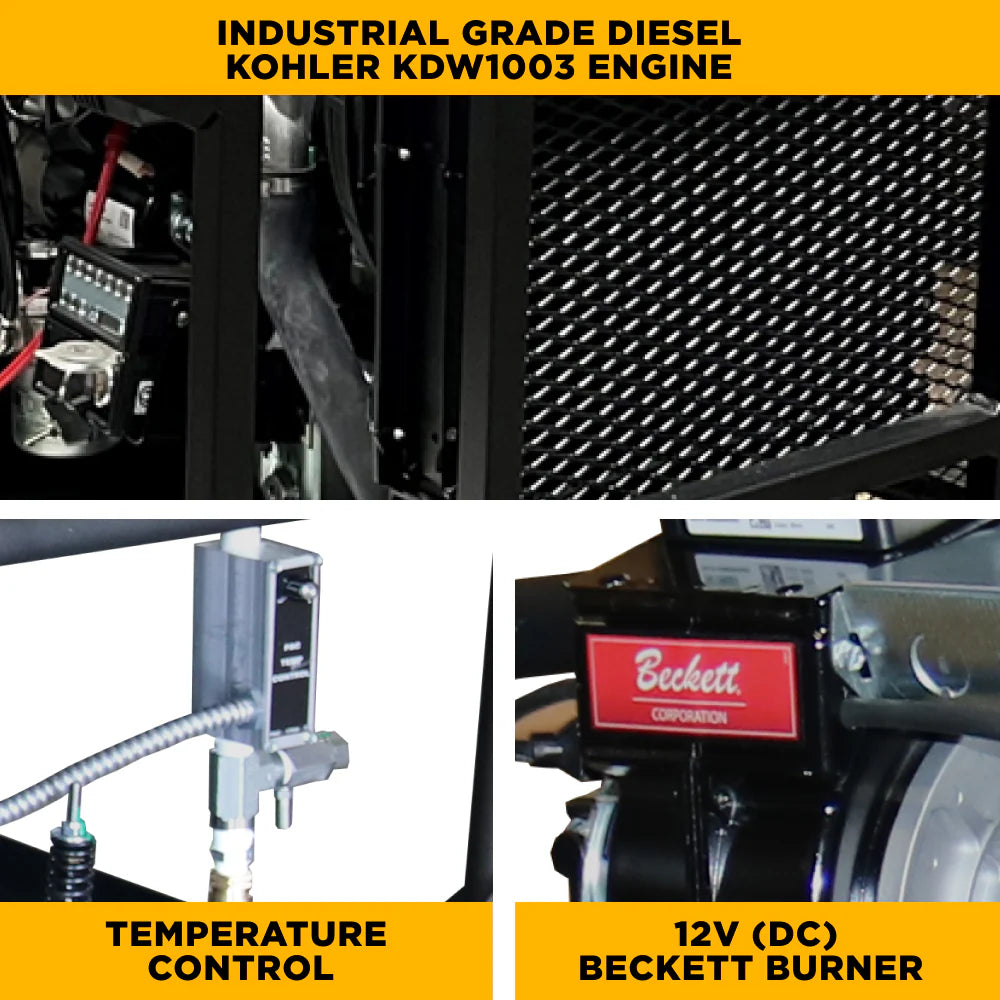

ENGINE: KOHLER KDW1003 DIESEL (1028CC)
Liquid-cooled, three-cylinder diesel engine with electric start. Provides maximum torque and longevity for continuous use.

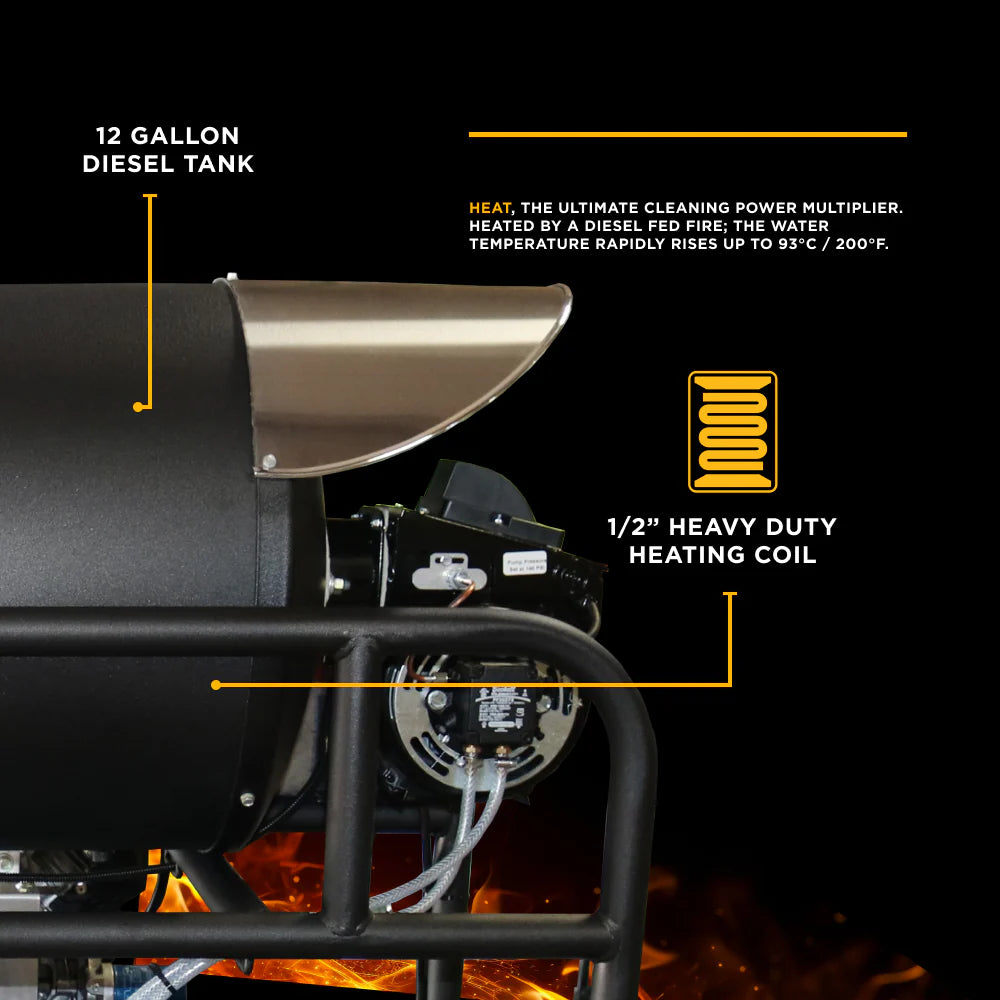

BURNER: 12V BECKETT DIESEL BURNER
High-output 420,000 BTU burner system. Maintains up to 200°F (93°C) at high flow.

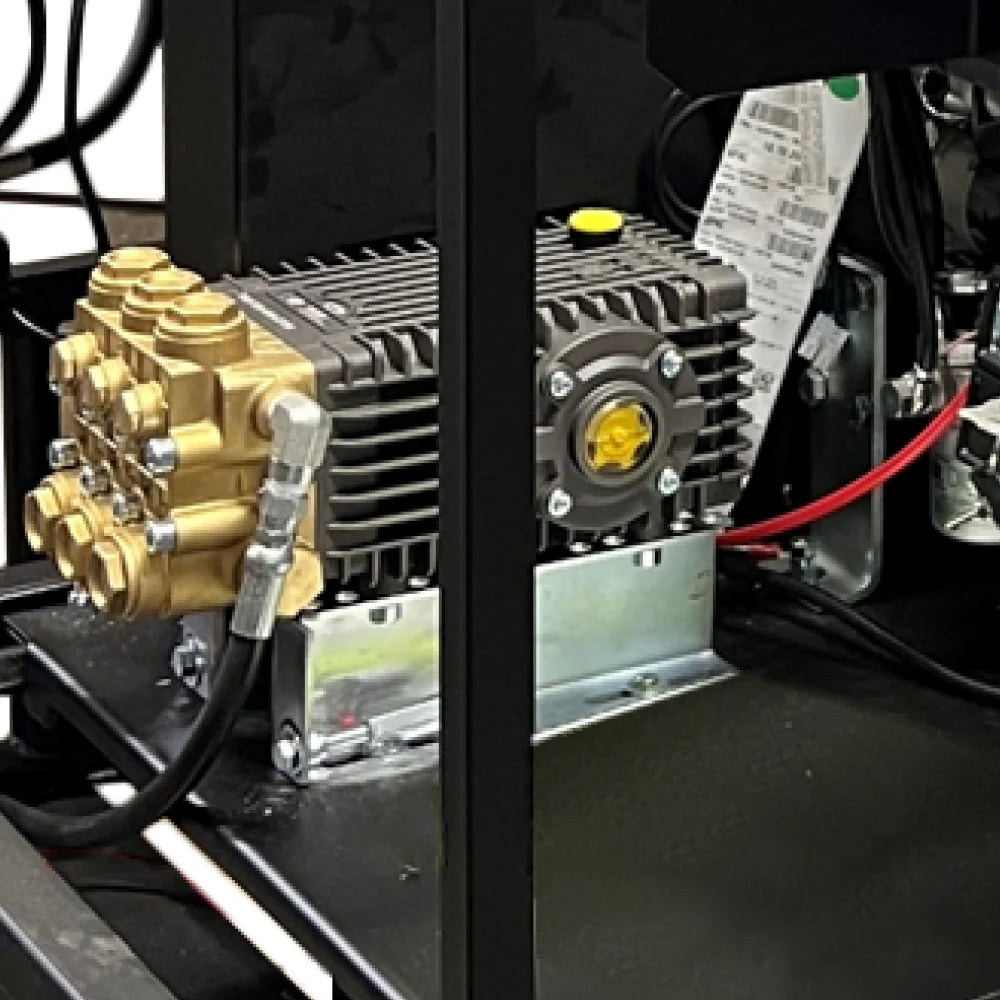

PUMP: GENERAL TSF2021 TRIPLEX
Belt-driven industrial triplex pump with a reinforced body, forged brass manifold, and solid ceramic plungers.
COIL: 1/2" SCH. 80 COLD ROLLED STEEL
High-capacity 238ft heating coil backed by a lifetime warranty against manufacturer defects.
PRO-SETUP: TANK & BYPASS READY
THE ALL-DIESEL SOLUTION FOR MOBILE RIGS
Designed for extreme duty cleaning and single fuel operation for both the engine and burner. The
External High Flow Unloader is engineered to be plumbed back into a water tank for bypass, preventing pump overheating during extended idle periods.
KEY FEATURES
Extreme Duty Fuel Capacity
25-GALLON ON-BOARD STORAGE:
Includes a 12-gallon black poly burner tank and dual diesel engine tanks for maximum industrial run-time.

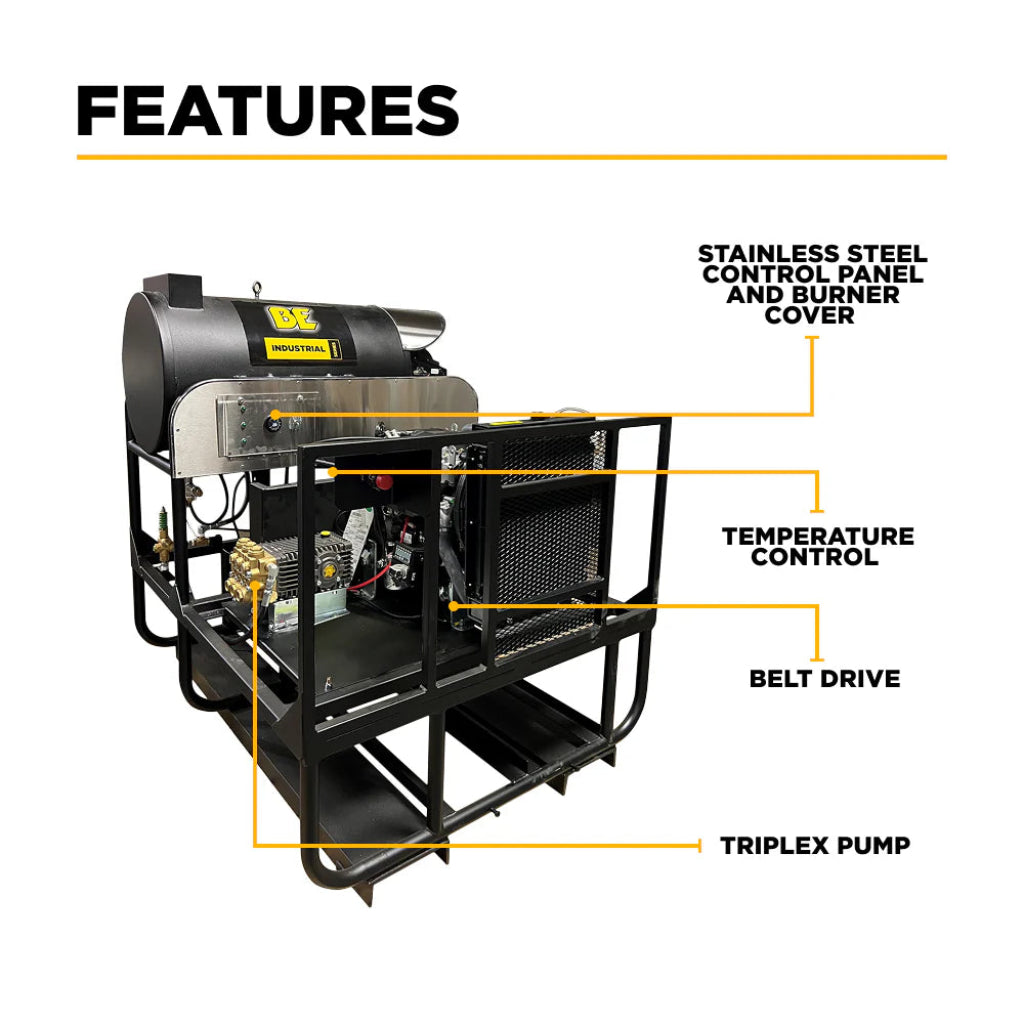

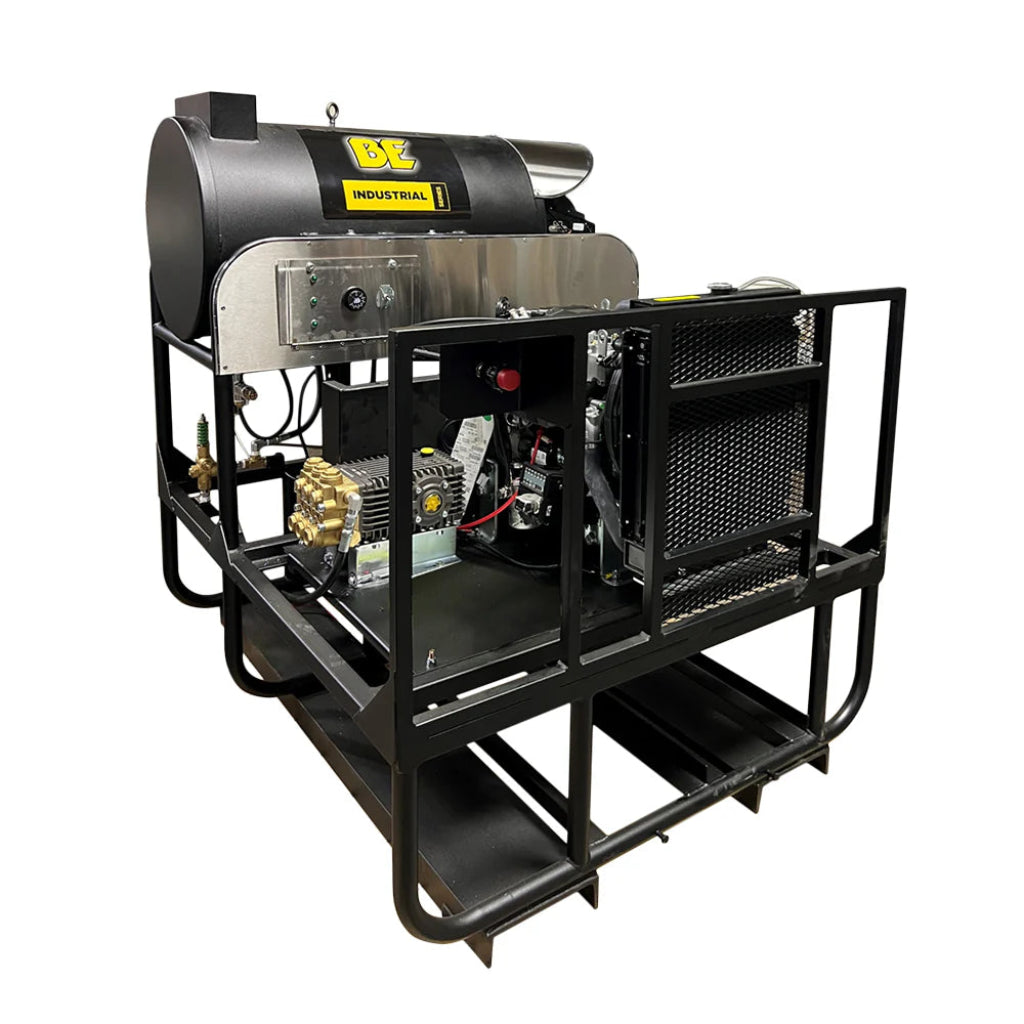

Elite Stationary Skid Design
-
Diagnostic Controls: Integrated hour meter, diagnostic lights, and toggle burner switch.
-
Stainless Components: Stainless steel control panel and burner cover for superior corrosion resistance.
-
Maintenance Optimized: External oil drain hoses on both engine and pump for easier servicing.
-
Stationary Build: Heavy-duty powder-coated skid frame with integrated forklift pockets and central hoist point.
JOB CAPABILITY

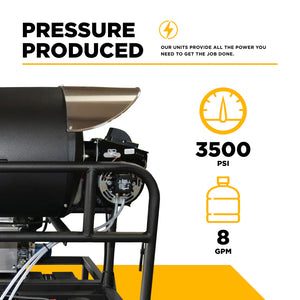

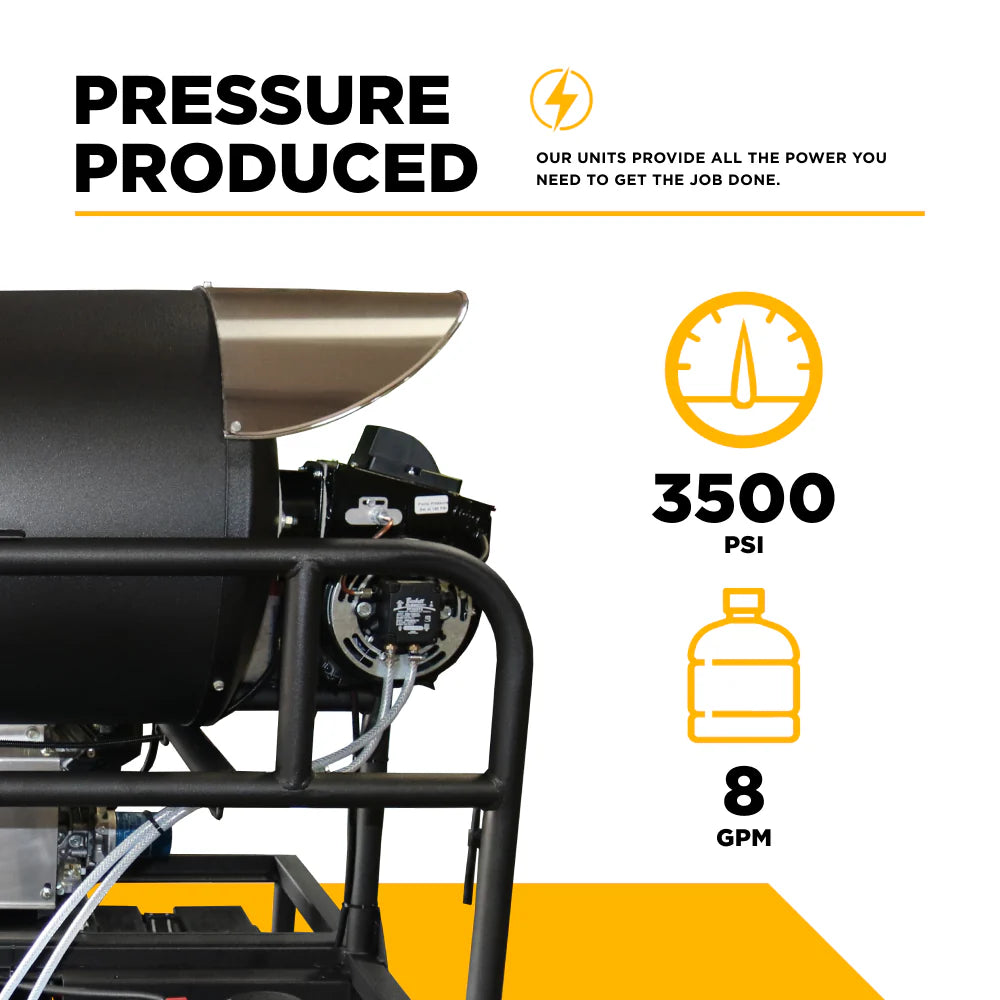

3500 PSI @ 8.0 GPM — HIGH-VOLUME ALL-DIESEL POWER
The apex of single-fuel rinsing and degreasing. The massive 8.0 GPM volume provides extreme flushing power for clearing thick mud from heavy construction and mining equipment, agricultural sanitation, and large-scale industrial remediation.
- Large Scale Truck & Trailer Rigs
- High-Volume Mining Maintenance
- Heavy Fleet Washing
- Agricultural Barn Sanitation
- Massive Industrial Facility Degreasing
- Oil & Grease Spill Remediation
IN THE BOX
- 1x
50' Steel Braided High-Pressure Hose (Double Wire Braided)
- 1x
Professional 48" Insulated Spray Wand & Gun
- 5x
Quick-Connect Nozzles (0°, 15°, 25°, 40°, Soap)
- 1x
Inline Fuel Filter
LOGISTICS:
Unit Weight: 1,297 lbs
Dimensions: 60" L x 52" W x 64" H
Fuel Type: Diesel (Engine) / Diesel or Kerosene (Burner)
Battery: Group 24 Deep Cycle (Required, Not Included)
Note: Professional rig installation and water supply tank required. Ships via LTL Freight.
